AU-120RP digital display electronic plastic rubber density meter, polymer density meter, density testing machine

Digital Electronic Plastic Rubber Density Tester , Polymer Density Meter , Density Testing Machine  Application: rubber,plastic,tyre,shoe materials,macromolecule,composite materials,elastic materials,conveyer belt,transmission belt,soft synthetic leather,leather,new materials researching laboratory. This prod

Featured Products

Digital Electronic Plastic Rubber Density Tester , Polymer Density Meter , Density Testing Machine





Application:



rubber,plastic,tyre,shoe materials,macromolecule,composite materials,elastic materials,conveyer belt,transmission belt,soft synthetic leather,leather,new materials researching laboratory.



This product is the new upgrade multi-function density measurement instrument,which has been researched and developed for a long time;It has the function of reading density value instantly,also the abrasion loss of relative volume,DIN,ARI,AKRON,expansion rate,change rate of quality and volume can be displayed.this machine has been applied widely and covered the whole rubber plastic industrial chain.





There are three different measuring mode:

  • density measuring M mode;
  • abrasion loss,expansion rate,density measurement D mode;
  • water absorption,quality and volume change rate measurement L mode.



Available measuring project and standard:



  • Density of rubber,plastic and tyre;change rate of quality and volume;in accordance with ASTM D792,ASTM D297,GB/T533 standard.
  • Rubber expansion rate;in accordance with GB/T18173.
  • Volume abrasion loss DIN;in accordance with GB/T9867, DIN53516,I SO464.
  • AKRON abrasion loss;in accordance with GB/T1689.
  • Water absorption for other liquids.
  • solid density for other industries.



Measuring resolution:



1.AU-120RP density resolution:0.0001g/cm3,weight resolution:0.001g,abrasion loss resolution:0.01cm3
2.AU-300RP density resolution:0.001g/cm3,weight resolution:0.005g,abrasion loss resolution:0.1cm3





Features:


1. Density of any rubber plastic products with any shape can be measured.

2. Accuracy,simple operation,quick;meet laboratory operation standard and quick cycle testing requirement on site.

3. Function of 10 group data storage for density value and DIN volume abrasion loss.

4. Totally according to DIN53516 standard;function of calculating average value for multigroup data.

5. Either water or liquid can be used as medium.

6. Function of actual water temperature setting,measuring medium density setting,waterproof medium density setting,aerostatic buoyancy compensation setting.

7. Function of weight loss value setting,fixed weight loss value setting,density setting for reference rubber.

8. As for new materials researching and developing,the percentage content of main material for two mixed objects can be displayed.

9. Automatically judge if the samples is qualified or not by setting top and bottom limitation;alarm warning.

10. Function of automatic zero tracking,buzzer warning,and overload warning.

11. Adopt completed high capacity injection moulding PC water tank,which can resist wear,fall off,and corrosion.

12. Adopt completed special windproof and dustproof cover.which makes the structure more convenient and durable.

13. Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.

14. Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm

15. Power supply:AC 100V-240V 50HZ/60HZ Europe standard





Standard Accessories:


(1) host(2)water tank(3)testing board(4)tweezers(5)thermometers (6)weight
(7)windproof dustproof cover(8)one set of measuring granule accessory(9)one set of measuring floating accessory(10)power transformer





Density measuring mode procedure:


(1)Place sample on testing board to measure weight in air,press ENTER key to memory.

(2)Place sample into water,density value will be displayed instantly(No need to press ENTER key)





Volume abrasion loss measuring mode procedure:


(1)Place sample on testing board to measure weight in air,press ENTER key to memory.

(2)Place sample into water to measure weight,press ENTER key,density value will be displayed.

(3)After abrasion testing is done,place sample on testing board to measure
weight,press ENTER key to memory,volume abrasion and density value will be displayed.





Anti-counterfeiting Announcement:



The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand
products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.

Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)

Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.

Method three:Check security code that generate automatically by machine number.





Technical Specification:



BrandQuarrz
ModeAU-300RPAU-120RP
Styleeconomicalstandard
Weight range0.005~300g0.001~120g
Density resolution0.001 g/cm30.0001 g/cm3
Density range0.001~99.999g/cm30.0001~99.9999g/cm3
Abrasion loss0.1cm30.01cm3
Testing boardABS injection mouldingAluminum alloy die-casting moulding
Measuring timeAbout 5 seconds for density measuring
Memory method

Two procedures for density measuring

Three procedures for abrasion measuring

Opening lid

method for

testing board

Rapid unobstructed without lifting lid design
Water tankCompleted injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm)
Parameter settingWater temperature setting,measuring medium density setting,waterproof medium density setting,top and bottom limitation setting,air buoyancy setting,weight loss value setting for referenced rubber,fixed weight loss value setting for referenced rubber,density setting for referenced rubber
Calibration methodSingle key calibration,automatically detection
Standard accessories

(1) host(2)water tank(3)testing

board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof

cover(8)one set of measuring granule accessory(9)one set of measuring floating accessory(10)power transformer

Data interfaceStandard RS-232 interface
Optional accessoriesAU-40 printer,data connection wire
Power supplyAC100V~240V 50HZ/60HZ Europe standard
Gross weight/size4.5kg/length42.5 cm×width17.5 cm×height32.5cm





The Advantage of New Quarrz Solids Density Meter:



(1) Adopt completed testing board and unobstructed without lifting lid design,more simpler operation,also makes the measuring result more reliable.



(2) One procedure; only need to enter ENTER button once.density vaule will be displayed.It is convenient for multiple testing.



(3) Upgrade circuit board;make the testing result more stable and reliable.



(4) Testing frame has been improved;more larger measurement space.



(5) Function of 10 group data storage.automatic measuring value of average,maximum,minimum.



(6)Choose liquid accessories,can be used as liquid density meter.

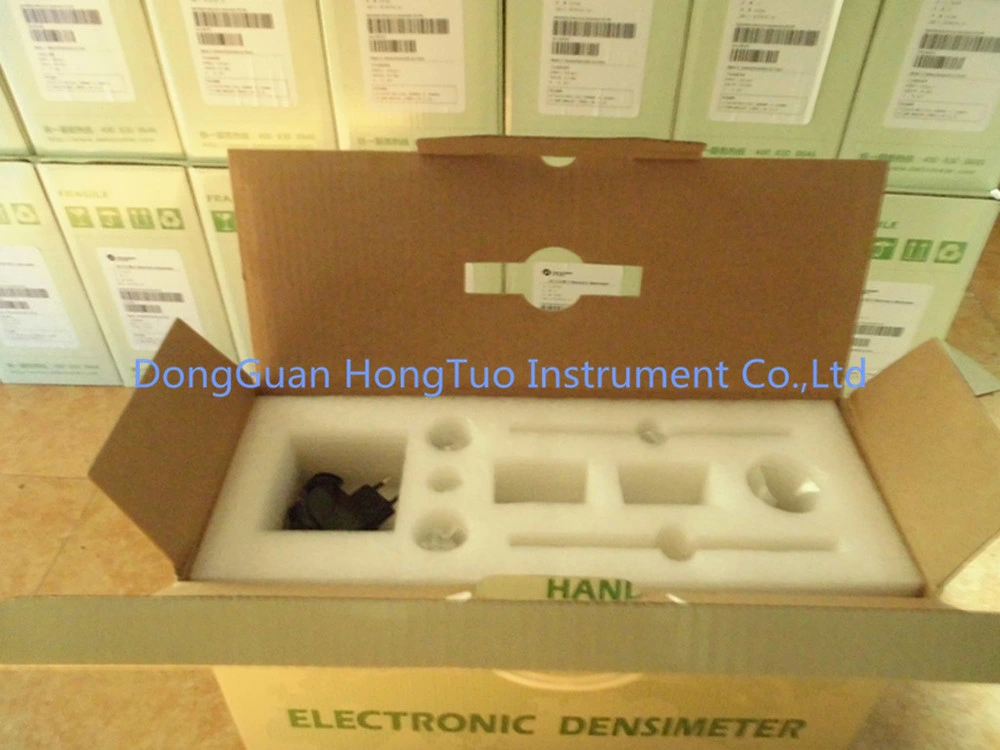

Packaging & Shipping:

AU-120RP Digital Electronic Plastic Rubber Density Tester, Polymer Density Meter, Density Testing Machine
AU-120RP Digital Electronic Plastic Rubber Density Tester, Polymer Density Meter, Density Testing Machine

Advantages:

AU-120RP Digital Electronic Plastic Rubber Density Tester, Polymer Density Meter, Density Testing Machine






Certifications:

AU-120RP Digital Electronic Plastic Rubber Density Tester, Polymer Density Meter, Density Testing Machine


Our Services:



  • 100% Competitive price    we are the original manufacturer of densimeter for years, the large scale production make our products more competitive, that's the reason we are very confident to offer the most possible competitive price for the same level testing instruments in the world.
  • High quality standards   we have the powerful professional researching and technology team to support quality;Our quality has been proved by the good market reaction for years;Our product are built to meet the industrial standards and global standards;Every instrument get checked and approved by our QC before delivery.
  • Faultless service   we have the professional customer service team to provide the one to one service for you;we can help you to enjoy the one-stop service without any worries;we have the completed after-sales service policy and quality insurance policy;we guarantee instruments for one year and life-long maintenance(Gold Purity Tester for two years)
  • Efficient logistics   we have the stable partner to help us to deliver the goods to the any corner of the worldwide shortly.Air shipment;International express:DHL/UPS/FEDEX/TNT(5 days to 7 days)
  • OEM service   We are the original manufacturer of densimeter,that is verified by the third party and Alibaba on site;We can provide you OEM service and print your logo on the instruments.

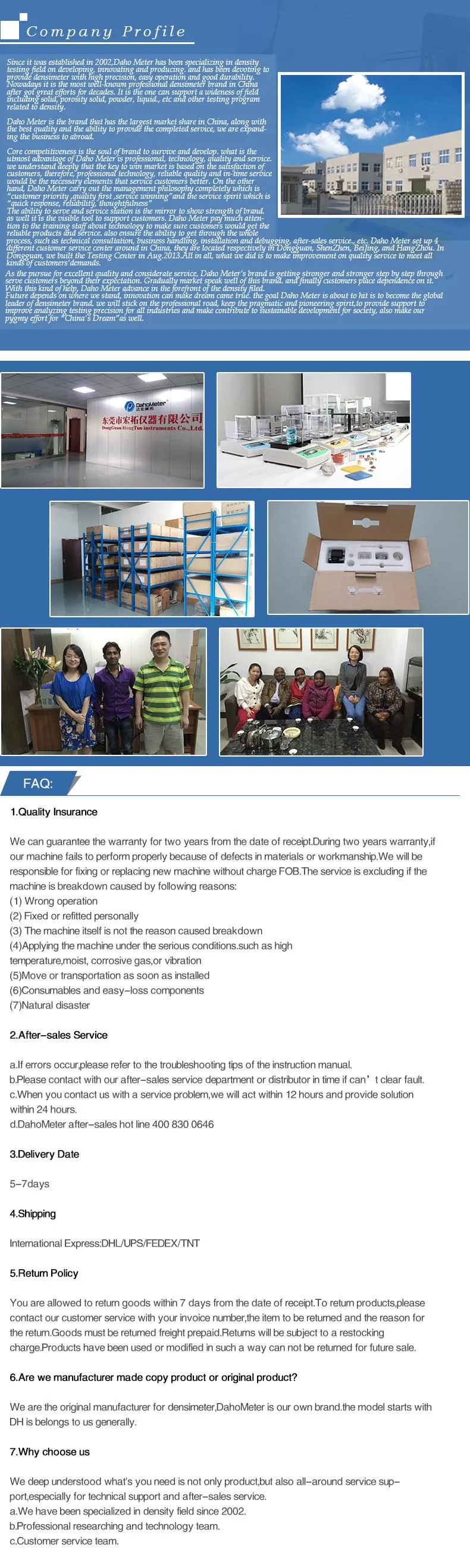

Company Information:
