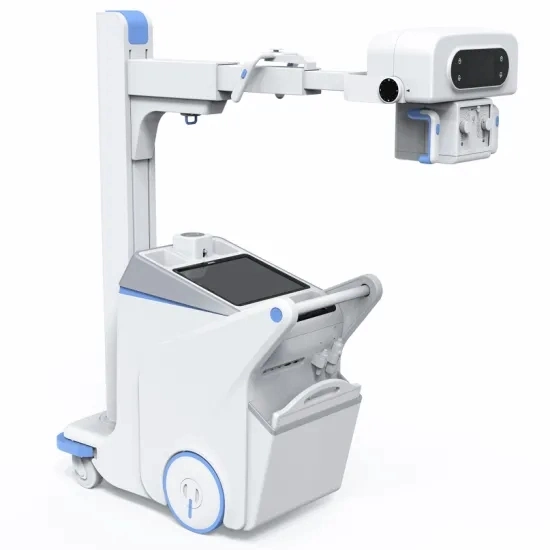

Syp Dr Digital X Ray Machine / X Ray Imaging System / Hospital Diagnostic Equipment

Flat Panel Detector
Specifications
•      Detector  technology: Wireless a-Si Flat Panel Detector
•      Scintillator material: CsI
•      Images size: 350mm x 430mm
•      Static pixel matrix: 2500 x 3052pixels
•      Effective pixels: 7.60million
•      Pixel size: 140μm
•      Spatial resolution: 3.5lp/mm
•      Output  grayscale: 16bit
•      Acquisition time: ≤7s

High Frequency Generator
Specifications

•      Nominal output power: 32kW
•      Max output power: 40kW
•      Frequency: 50kHz/60kHz±1Hz
•      kV range: 40~150kV, 1kV step
•      mA range: 50-400mA
•      mAs range: 1~630mAs
•      Input power: 220V

X-ray tube
Specifications
•      Focus: 0.6/1.2mm
•      Voltage: 150kV
•      Anode type: Rotating
•      Anode heat capacity: 300kHU
•      Anode angle: 12°

Mobile Stand
Specifications
•      The Vertical Movement Range of X-ray Tube Center along the Column: 580~1800mm
•      The  Telescopic  Movement  Range   of  X-ray   Tube  Center   along  the   Column  Side:
       720~1220mm
•      Stand Column Horizontal Rotation Range:  ±315°
•      Collimator Rotation Range along the vertical axis: ±90°
•      Mobile Stand Size: 1230 × 580 × 1820 mm

Collimator
Specifications
•      Control: Manual
•      Filter: 1.2mm Al
•      Light: LED lamp

DX Ray Diagnostic Workstation
Specifications

•      Display size: 19inch
•      Pixel matrix: 1280 x 1024pixels
•      Patient Management: manual registration, WORKLIST automatic query.
•      Image Acquisition: automatic window adjustment, automatic cropping,   automatic transmission.
•      Image Processing: image correction, image flipping.
•      Image Observation: window width  window  level  adjustment,  image   flipping,  image rotation, image scaling, and restoration.
•      Medical Record Report: automatic loading of patient information
•      Film Printing: support DICOM3.0 standard laser camera  printing.
•      DICOM Transfer:  send  images  to  any  PACS and  workstation  that  complies  with the DICOM 3.0 standard.


Other features
Dose control mode
•      APR (Anatomically Programmed Radiography) mode
•      Manually setting the exposure mode
Mobility performance
•      Electrically assisted drive and has brake equipment
•      Support switch to manual mode  without power
•      Slope assist system, maximum movement slope: ≤8 °
Collision resistance
•      Collimator protector against human collision
•      Braking function for moving object collision
•      Slope assist system, maximum movement slope: ≤8 °
Interactive system
•      Time-lapse exposure function
•      Remote visual observation system and intercom system
Power management system
•      Battery power display device
•     Independent control  system  for power  assist and  high  frequency  generator exposure output
•      Quick charging mode
•      Power intelligent management system: computer sleep, high frequency generator sleep mode
•      Intelligent power switching function: support exposure during charging


Specification and Features
GeneratorNorminal power32kW
Maximum power40kW
Kvp range40-150kV
Current range10-400mA
Current time0.1-500mAs
Inverter frequency40kHz



X-ray Tube
Toshiba E7843X
Focal spot0.6mm/1.2mm
Maximum input power 20kW/46kW
Maximum input current370mA/760mA
Anode typeRotating anode
Anode thermal capacity150kHU
Anode rotational speed3200r/min
Target angle12°



CollimatorInherent filtration1.2 mm Al /70kV
Rotation degree±90°

Detector I
Varian 4336R (wired)
 X-ray sensitive area42.4cm×35.3cm
Pixel size139μm
DQE70%±5%(0 lp/mm, RQA5)
Pixel matrix3072×2476
Limiting resolution3.6 lp/mm
Cycle time10s
A/D conversion14bit
Image preview≤6s

Detector
Thales 3543EZ (wireless)
 X-ray sensitive area43cm×35cm
Pixel size148μm
DQE66%(0 lp/mm, RQA5)
Pixel matrix2880×2400
Limiting resolution3.4 lp/mm
Cycle time10s
A/D conversion16bit
Image preview≤3s

Detector
Thales 2430EZ
(Mini panel, wireless)
 X-ray sensitive area30cm×24cm
Pixel size148μm
DQE70%±5%(0 lp/mm, RQA5)
Pixel matrix2000×1600
Limiting resolution3.4 lp/mm
Cycle time10s
A/D conversion16bit
Image preview≤1s

Detector
Iray 1417P(wired)
 X-ray sensitive area42cm×35cm
Pixel size150μm
DQE
Pixel matrix2800×2300
Limiting resolution3.3 lp/mm
Cycle time9s
A/D conversion14bit
Image preview≤7s

Detector
Iray 1417V(wireless)
 X-ray sensitive area42cm×35cm
Pixel size150μm
DQE
Pixel matrix2880×2400
Limiting resolution3.4 lp/mm
Cycle time9s
A/D conversion14bit
Image preview≤7s

Detector
PerkinElmer Xrpad 4336MED(wireless)
 X-ray sensitive area43.0cm×35.5cm
Pixel size100μm
DQE75%(0 lp/mm, RQA5)
Pixel matrix4320×3556
Limiting resolution5.0 lp/mm
Cycle time9s
A/D conversion16bit
Image preview≤6s

Position and physical specificationTube vertical rotation angle±180°
Tube tilting angle-30°~90°
SID60-180cm
Tube transverse motion72-124cm
Cantilever typecross telescopic arm
Column rotation angle±270°
Climbing capacity 7°(Automatic)
Dimension127cm×67cm×184cm
Weight530kg

FeaturesMotor drivenYes
Exposure by battery power supplyYes
Remote control exposureYes
Anti-collision brakingYes

Image workstationMonitor19 inch touch screen, 1280×1024
ProcesserCore I3 dual core processer
RAM≥4GB
SATA≥500GB
Operating Systemwindows 7
Operating softwareDROC

Software functionPatient registration and data editYes
Expose parameter adjustionYes
image viewYes
image process and outputYes
Data mannagementYes
DICOM 3.0 Yes
